Seat Rails

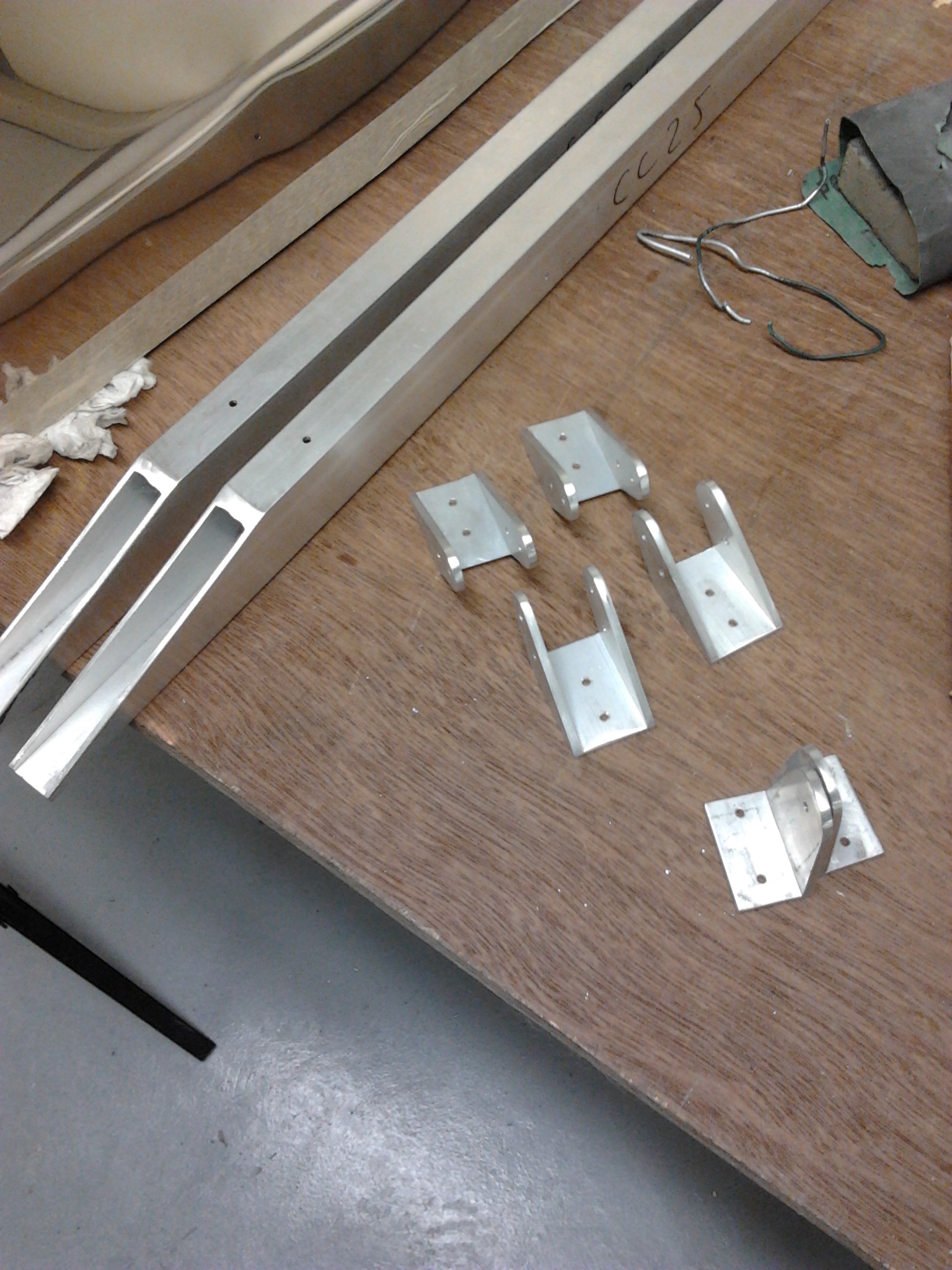

The seat rails fit between various key parts on the body. They require mounting brackets to be profiled to clear rivet heads and the support members profiled to fit.

Seat Brackets

seat rails

Front Rudder Pedals

Rudder pedals are mounted on plates that sit just above the footwells.

The support brackets are drilled and shaped and then etch primed ready

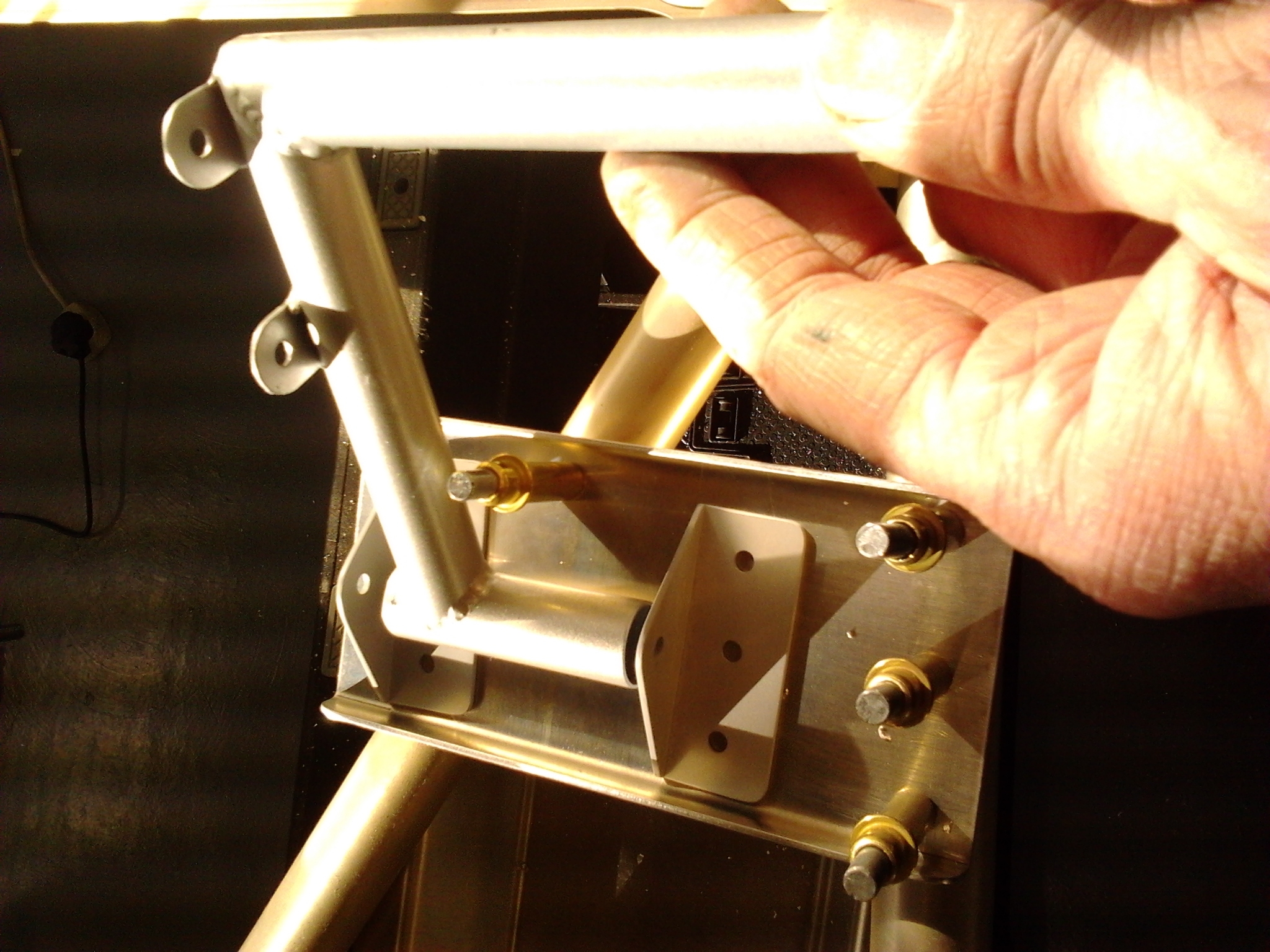

Front pedal plate

Each pedal is bushed and the rivets pick up the main cross beams of the aircraft. The pedals are provided pre welded but need rubbing down, etch priming and then 3 coats of Hammerite.

Left rudder pedal

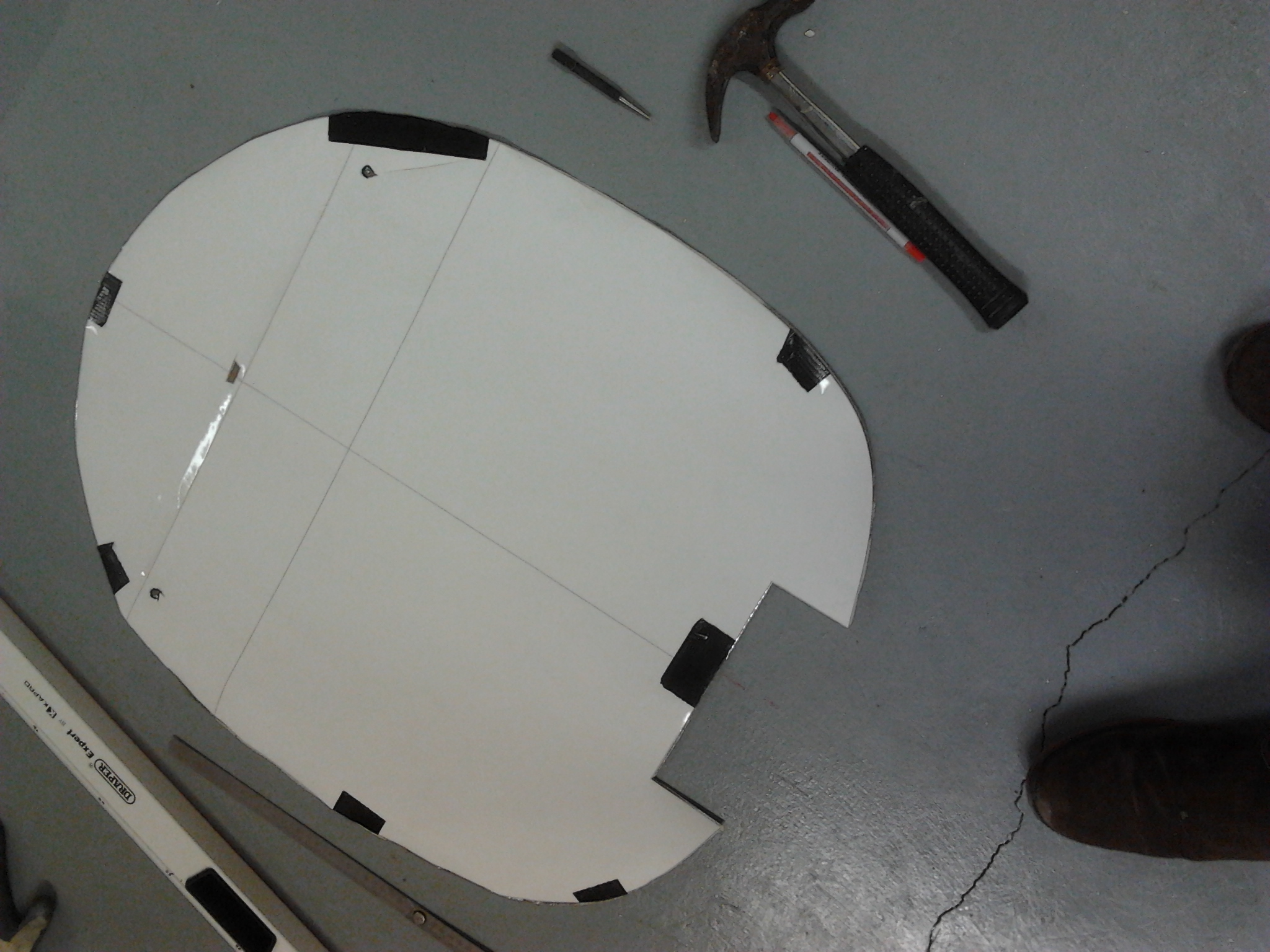

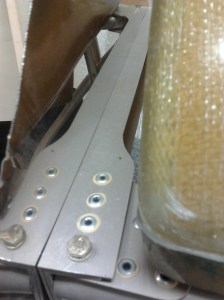

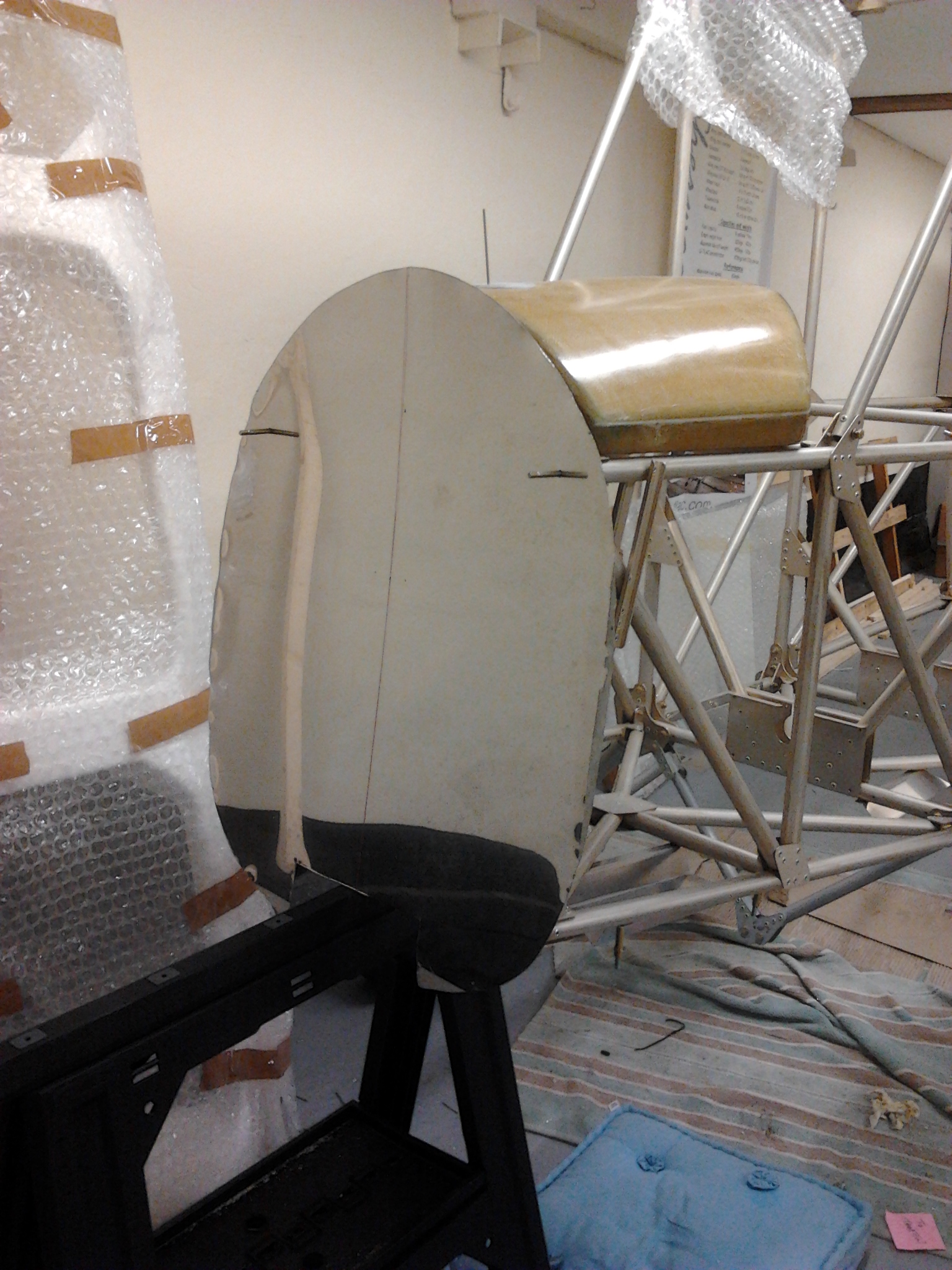

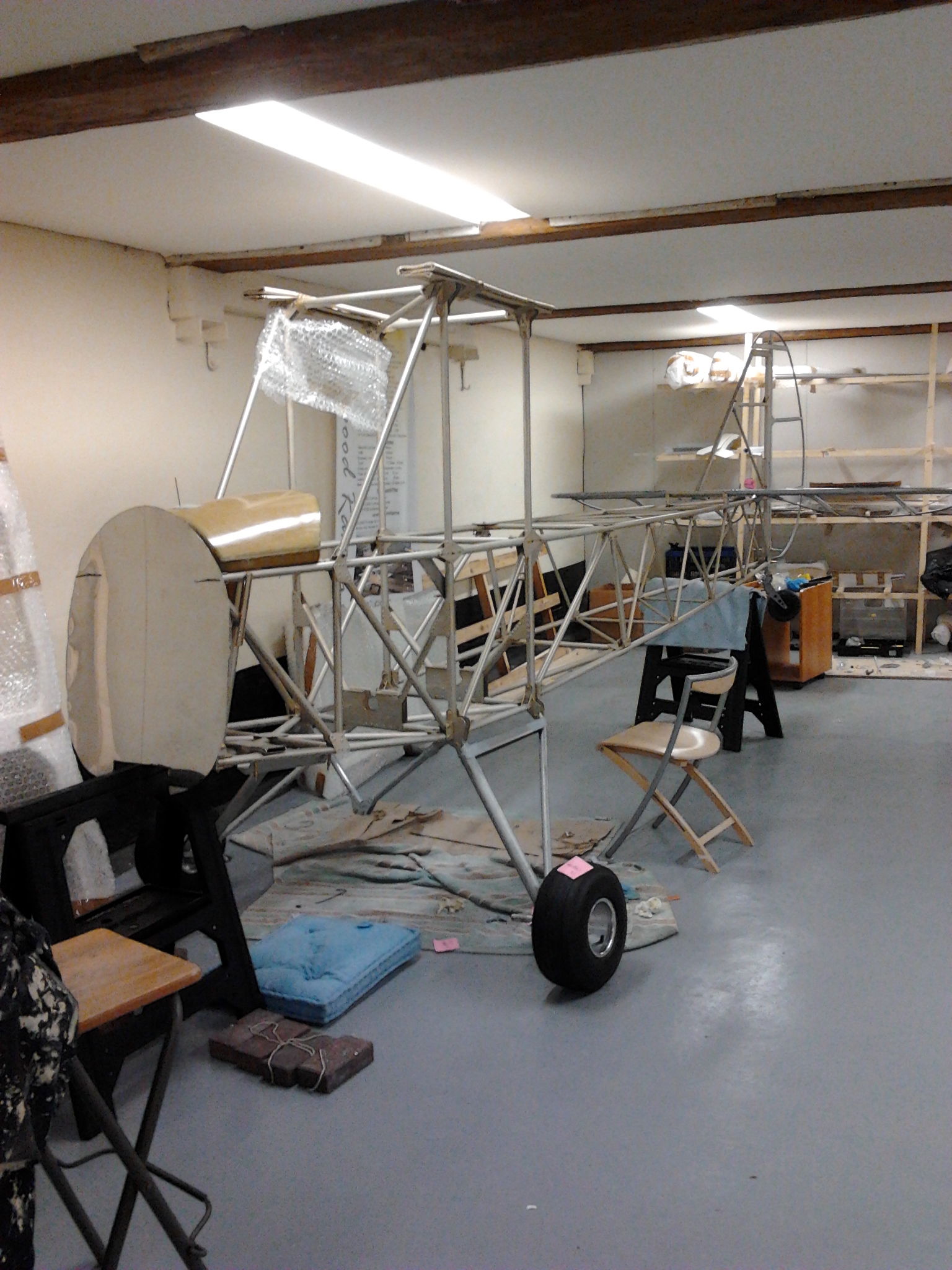

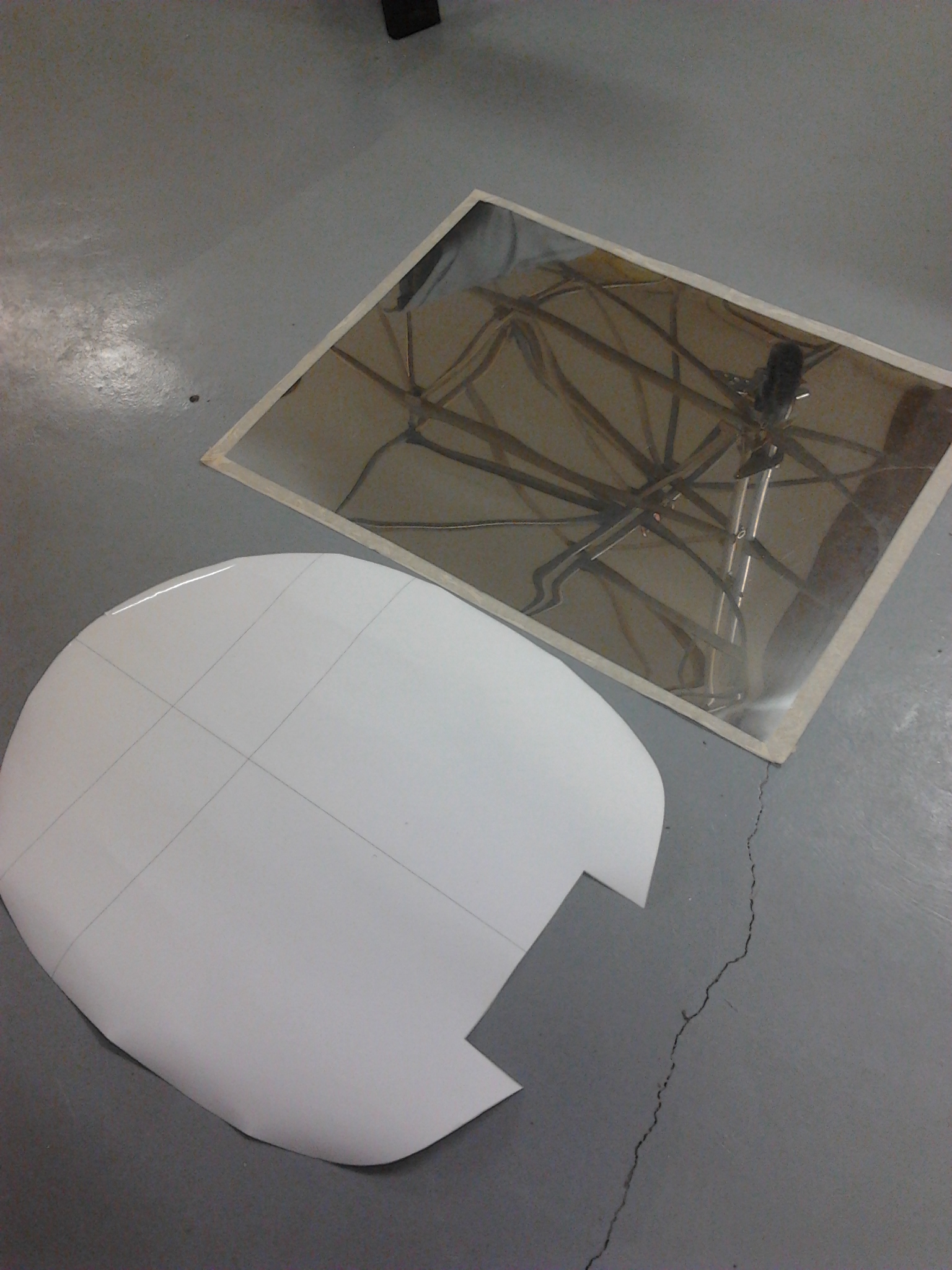

bulkhead 1b Bulkhead 1 Bulkhead 1bulkhead 1 a bulkhead first fit 2 Bulkhead first fit Bulkhead 2Engine bulkhead is cut from a sheet steel using the provided template…. note the indent duct which is for an add on folded exhaust section.

I was not looking forward to this step .. could end up looking a mess if you get it wrong ! and great if you get it right !

Used the template and heavy cutters and big gloves – cut edges double as Stanley knives .. only sharper

Then used the template to align centre vertical and cross check with copius measuring. Then overlayed template to nose and existing engine bolts to get these centre punched and then drilled … top two were spot on.

Next step is the fold in the bulkhead and top pilot holes before positioning to pick up lower engine bolts.

Ailerons – Start to prepare by shaping ribs

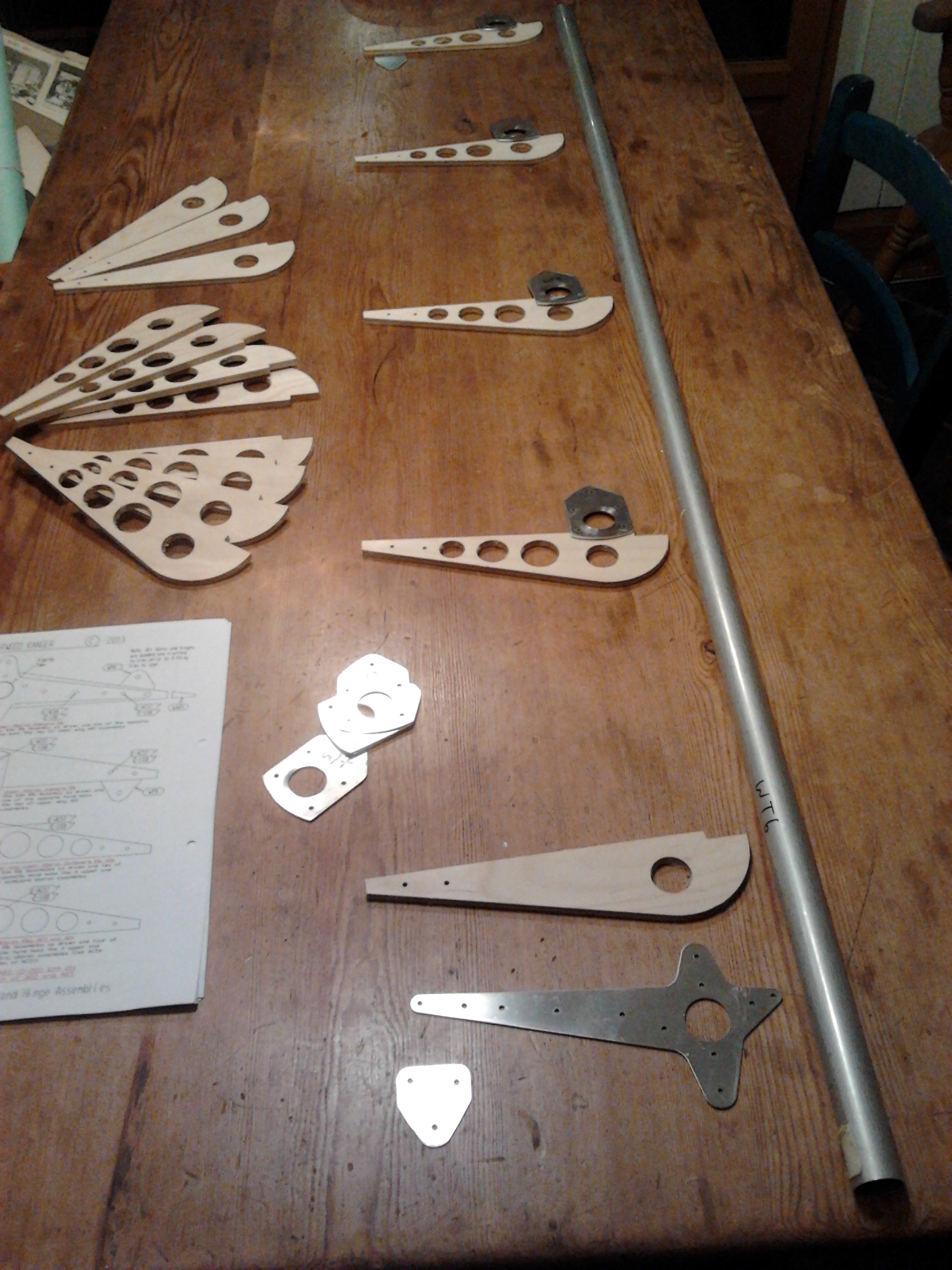

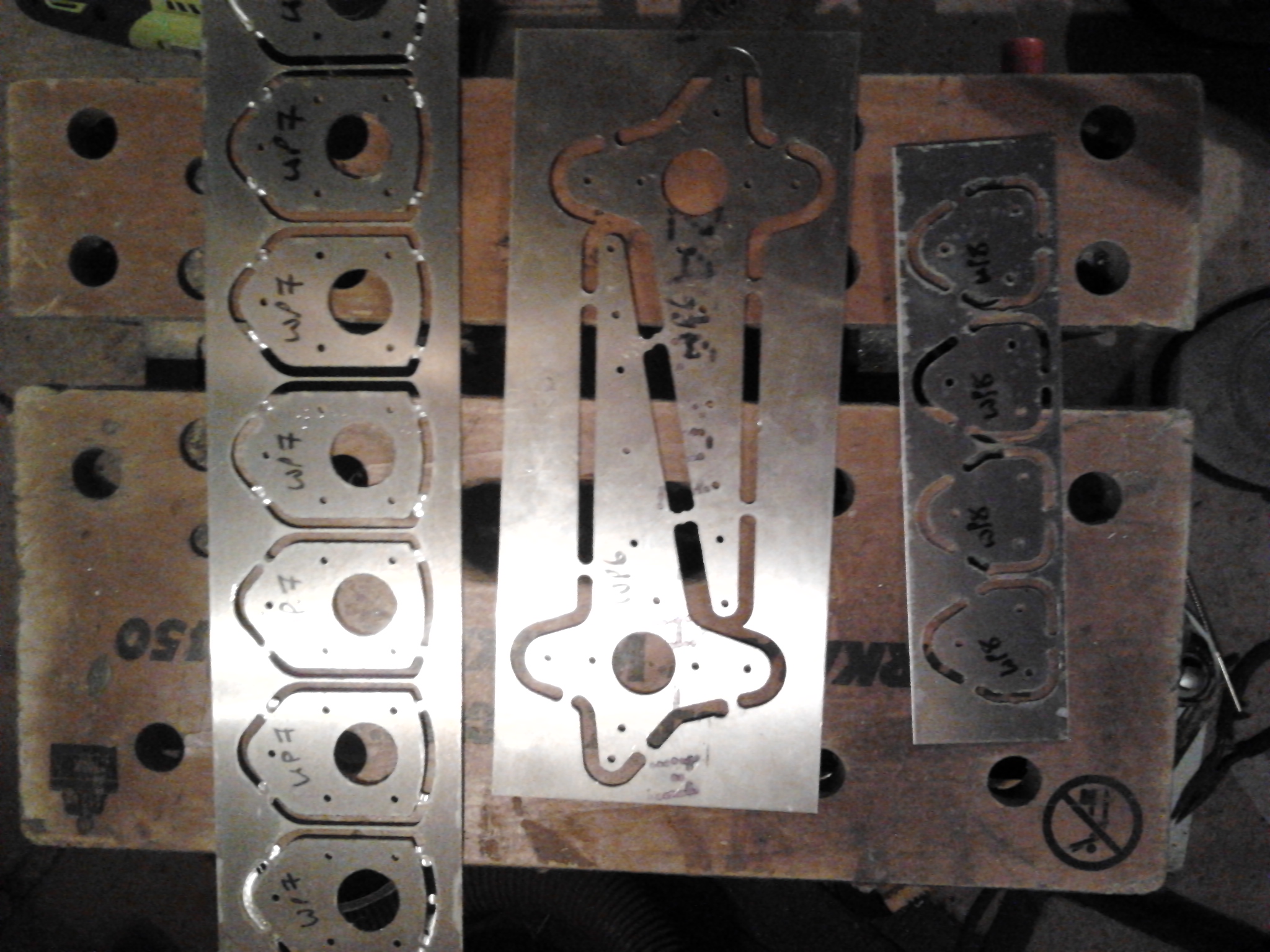

Aileron ribs are CNC pre (part) cut. Thicker ones are 6mm ply and need rubbing down for prep to test fit to aileron spar

aileron pre cutaileron prep1

Tucked up above my garage as the Force 6 outside winds its way up to  Force 8 its quite cosy cutting out ribs and bracing sections. Supposed to be nipping to Guernsey tomorrow in a Cherokee Six but forecast F7 Northerly’s on an E/W runway is not conducive to keeping the legs straight !

Footrests Rear (Pilot) ones first

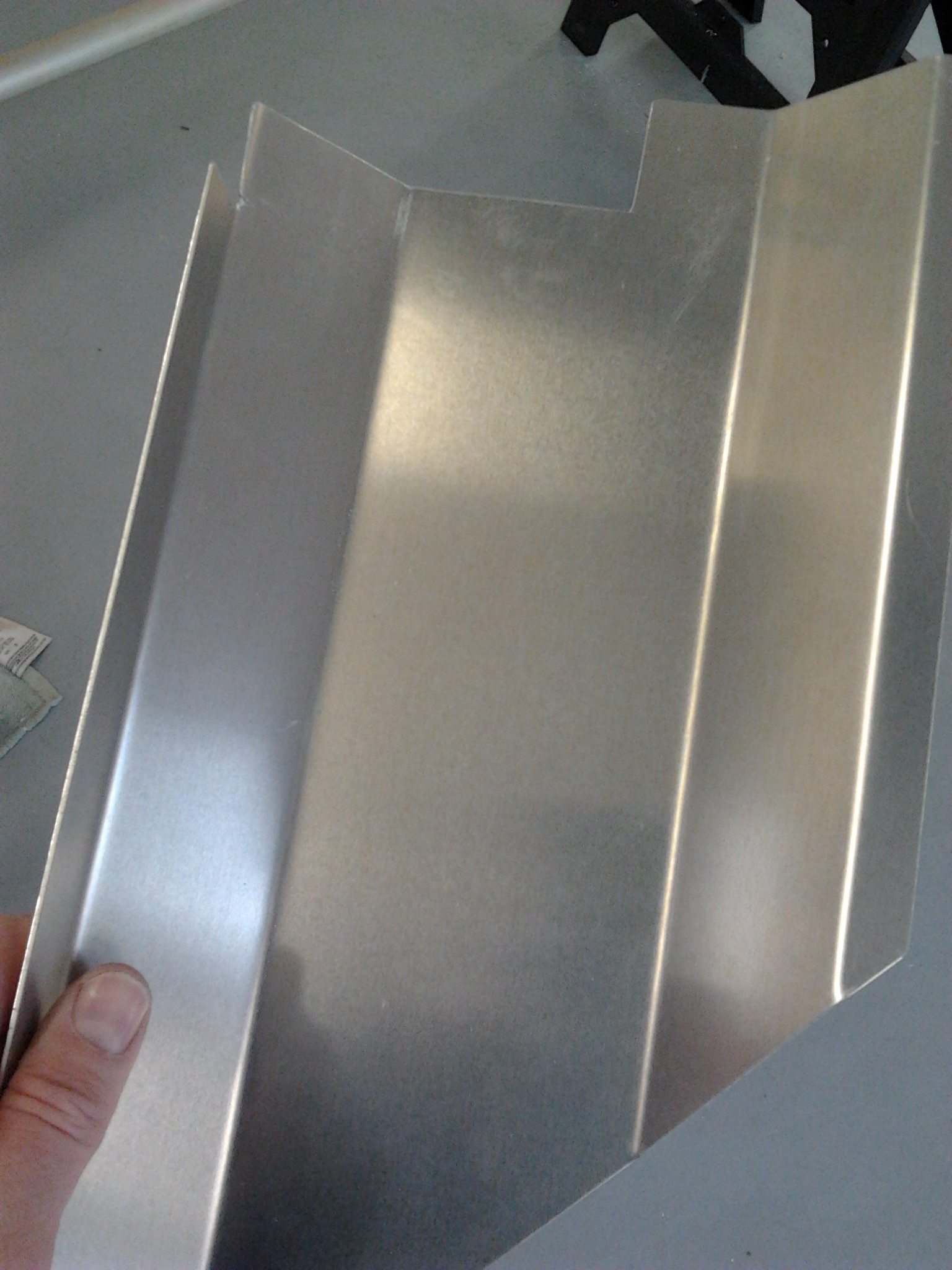

Footrests are largely pre folded metal but require  little shaping to fit between body stringers

rear footrest profile

Had to loosen and move the two centre bracing bars that were factory fitted so you can get a drill square onto the rear of the footrest and drill into longerons. The bars moved out and then relocated with fresh duralac to fit snugly again.

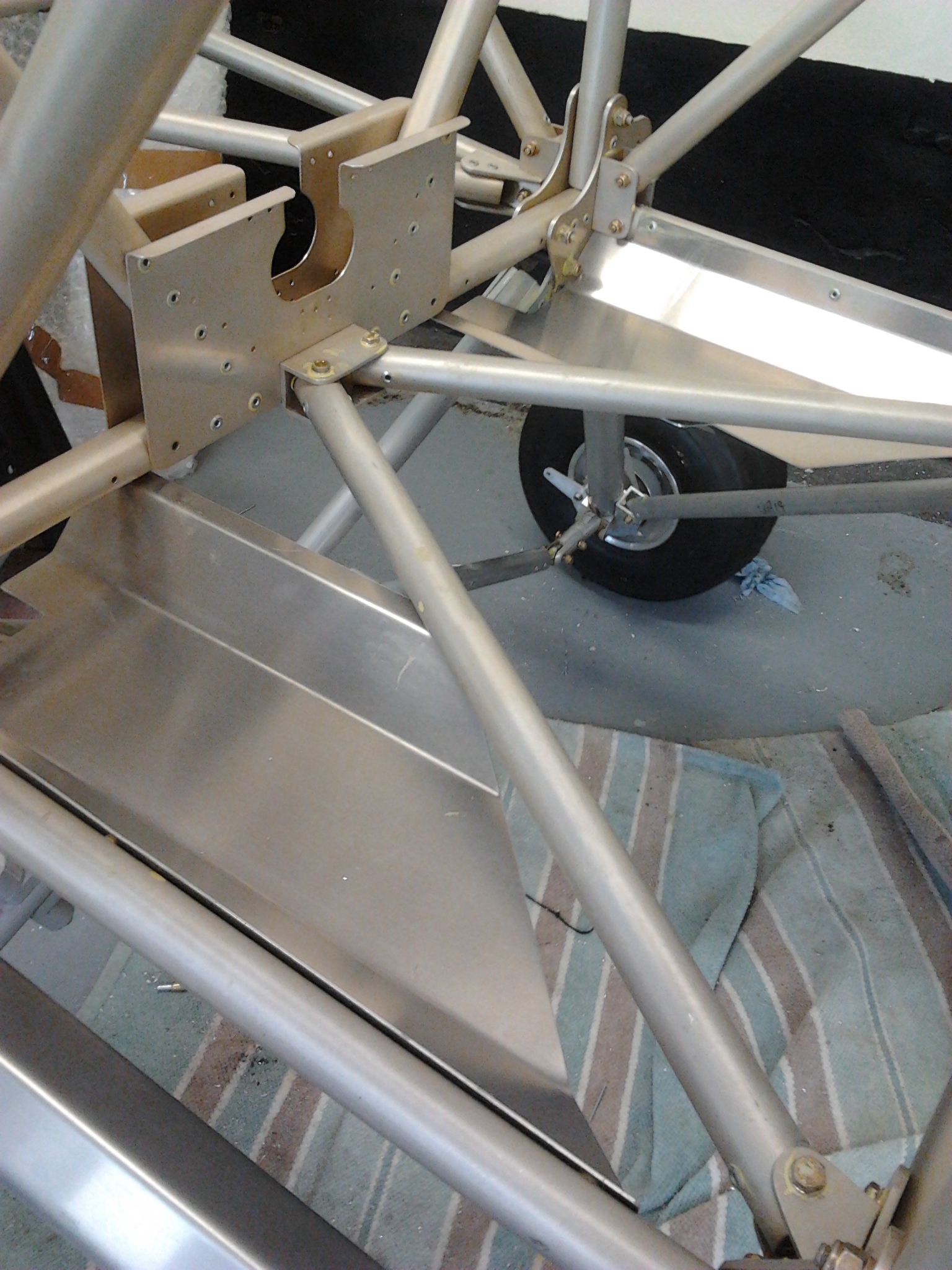

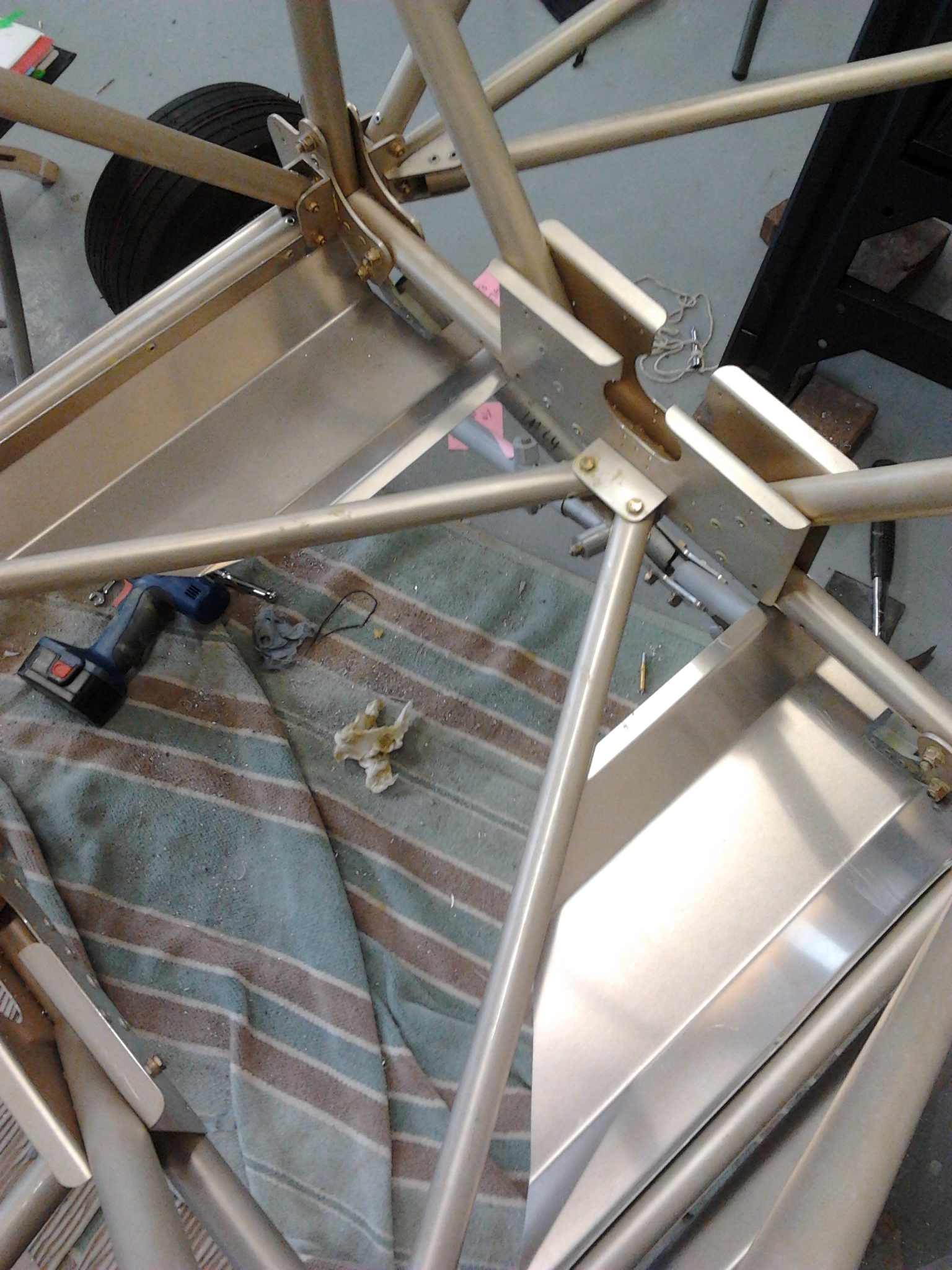

Rear footrest 2Rear footrests 1

Front ones next

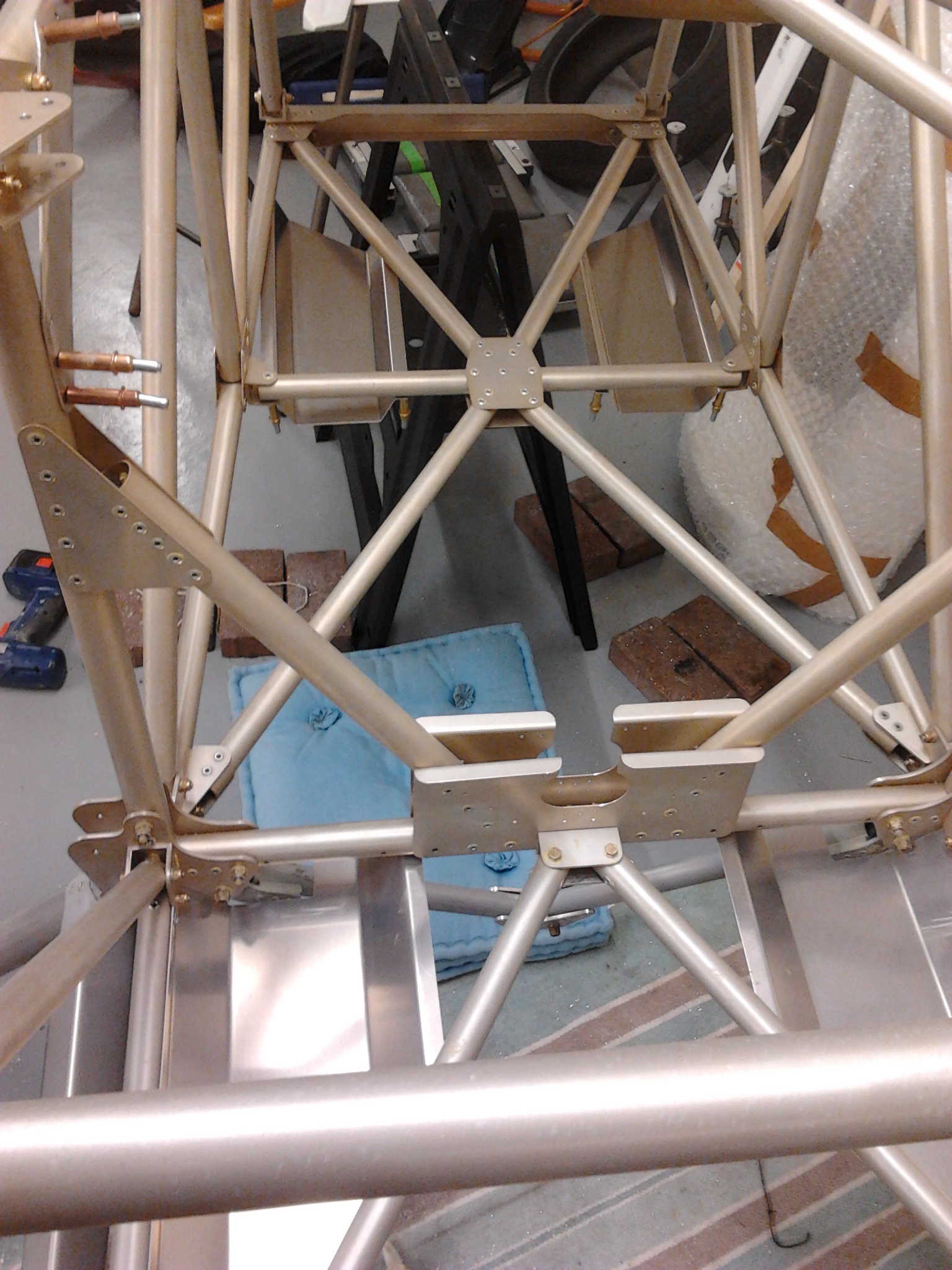

Front footrests
